Features

Fits into a standard 5.25" drive bay

6 card reader slots

Supports more than 60 model of memory cards

4 x USB 2.0/2 x USB 3.0/1x eSATA interface

1x microphone port/1x earphone port

Windows 7/8/8.x

Makes the Computer more Sociable

Many peripherals can get in touch due to the multi-port front panel. Over 60 memory card types fit and can be read. Two USB 3.0 ports allow super-fast data transfer and the USB 2.0 and eSATA interfaces ensure flexibility with peripheral devices.

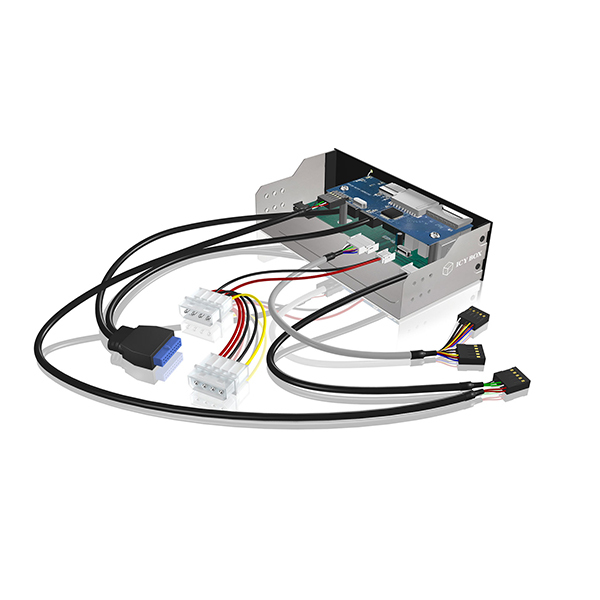

Connection IB-863a:

USB 3.0: Internal to the mainboard

USB 2.0 hub and card reader: Internal to the mainboard via USB 2.0 cable

eSATA: Internal to the mainboard via SATA cable

Audio: Internal to the mainboard via Audio cable

Power: Internal to the system power supply via Big-4Pin Molex

Specifications

Model: IB-863a

Category: Card Reader with multiport front panel

Colour: Black

Material: Plastic/Aluminium

Required Space: 1 x 5.25"

Memory card support Generic type of cards: xD, SD, SDHC, SDXC, MMC, RS MMC, MicroSD, CFI, CFII, MD, MS, MS Pro, MS Pro Duo, M2

Front port: 4x USB 2.0, 2x USB 3.0, 1x eSATA, 1x microphone, 1x earphone, 6x card reader slot (NOTE: For using the USB 3.0 ports, a motherboard must have at least one USB 3.0 19 pin socket.)

Operating system: Windows 7/8/8.x

Transfer rate:

USB 2.0 up to 480 Mbit/s

USB 3.0 up to 5 Gbit/s

eSATA up to 3 Gbit/s

Power switch: No

LED: Power and access

Power connector: Internal Molex power cable

Product Content

1 x Card Reader
