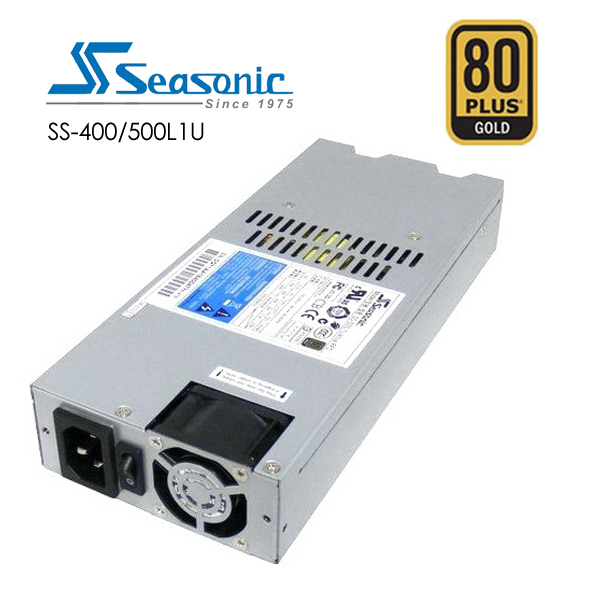

Switch Mode Power Supply - Intel EPS 12V- SS-400/500L1U Active PFC

Features:

Specification compliance: Intel EPS 12V

DC to DC converter design

High efficiency and reliability

Low THD

Low ripple & noise

Super low noise fan control

Short circuit protection on all outputs

Over voltage protection

Over power protection

100% hi-pot test

100% burn in, high temperature cycled on/off

DC Outputs:

Model: SS-500L1U Active PFC

DC Outputs:

+3.3V	+5V	+12V(Combined)	-12V	+5Vsb
20A	20A	40A	0.3A	2.5A
100W*		480W	3.6W	12.5W

(Remarks: * Combined +3.3VDC & +5V DC maximum power)

Total Power: 500W

Input Type: Full range

Electrical Specifications:

Input frequency: 47/63 Hz

Inrush current, cold start: 100A max.

Efficiency, at normal input voltage: > 87%

Line regulation: +/-1% typical

Load regulation: +/-5% typical

Cross regulation: +/-5% typical

Ripple / noise: 1%

MTBF, full load: >100K hours (Excluding the DC fan)

Power Factor Correction: Active PFC 99% typical

Certifications:

Satety: CUL, UV, CB

EMC: CE, Fcc, C-Tick

Specifications:

Dimension: L235 x W100 x H40mm

Connectors: Customized modular cables

Package contents:

1x SeaSonic 500W Active PFC F3 1U PSU (SS-500L1U)
