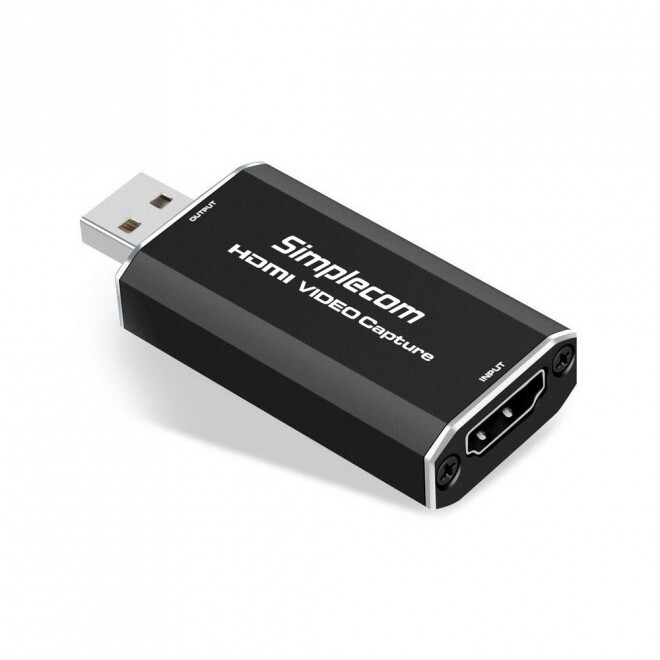

DA315 is a compact HDMI to USB 2.0 video capture card, which allow you to capture HDMI video in Full HD 1080p. You can simply hook up your camera, camcorder, game console or other HDMI source to your PC or Mac for recording or streaming. Compliant with UVC (USB Video Class) and UAC (USB Audio Class), it's Plug in and Play and easy to use, no driver installation is required. Ideal for video recording, live streaming, video conference, and compatible with most mainstream capture software and live platforms.

Features
Easy Operation, Plug in and Play, No driver required
Support HDMI input resolution up to 4K
Support USB output resolution up to 1080p
Compliant with UVC (USB Video Class) and UAC (USB Audio Class)
No external power supply required, compact and portable
Compatible with most mainstream capture software, such as VLC, OBS, Amcap, etc. Ideal for video recording, live streaming and video conference
Support Windows, Mac OS

Specifications
HDMI Input Resolution Support: up to 3840x2160@30Hz USB
Output Resolution Support: up to 1920x1080@30Hz
Video Input Format: 8 / 10 / 12-bit
Deep Color
Video Output Mode: YUV / JPEG
Audio Format Support: L-PCM Input
HDMI Cable Support: < 15m (AWG26 Standard HDMI Cable)
Maximum Working Current: 0.4A / 5VDC
Operating temperature range: (-10 to + 55 Celsius)
Dimension (L x W x H): 64 x 28 x 13mm
Weight: 21.4g
Material: Alloy Aluminium
System Requirement CPU: Quad Core Intel Core i5 or higher, Core i7 CPU is recommended RAM: 4GB or higher
Graphic Card: NVIDIA GT630 or higher
Operating System: Windows 10 (64-bit), Mac OS X10.9 or higher

Important Note
Avoid USB hub or extension cable, connect to computer USB port directly Low performance PC will cause lag when recording or steaming
Make sure select right audio input device if more than one audio source connected YUY2 Video format is not supported
Certain Canon and Fujifilm camera models are not supported, e.g. EOS 6D, 6D Mark II, M10, Rebel
